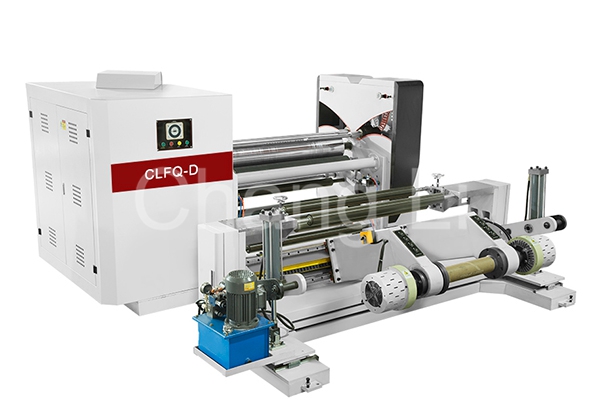

前提技艺主要参数Main Technical Parameters：

网络制式 Model	CLFQ-D1150	CLFQ-D1350	CLFQ-D2650
zui大资料间距MAX. Width of raw material	1120mm	1320mm	2620mm
zui大放卷尺寸Max.parent Web Diameter	Φ1500mm	Φ1500mm	Φ1500mm
zui大收卷尺寸Max.Rewinding Diameter	Φ680mm	Φ680mm	Φ680mm
zui高产品波特率 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
基本资料宽度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总效率 Total Power	14KW	16KW	19KW
权重 Machine Weight	3800kg	4300kg	4800kg
图行的尺寸 Overall Dimensions	3500×2500×1450mm	3500×2700×1450mm	3500×3900×1450mm
zui小分切机间距 Min.Slitting Width	圆刀Round Blade :3mm	直刀Razor Blade :3mm

可确定产品表单提交 尤其制造技能。Can be made according to the product requires special equipment.

合用规模
外表卷取复卷分切机合用于卷筒纸、塑胶片、铝箔、PVC、塑料薄膜、无纺布、熔喷布、绝缘资料等包装资料的分条复卷是对资料停止藐小规格分切的抱负装备。

机能及特色
1.放(faౠng)卷主(zhu)动(dong)超声波纠偏(pian)、接纳无(wu)轴液(ye)压(ya)高低(di)料，摆布间距调理均由液(ye)压(ya)实现，磁粉(fen)主(zhu)动(dong)张力节制。

2.收卷由两个路由器矢量图建筑机电推动与主机结构联动性控制期间卷取与看起来作战连用，双轴穿插在收卷，决不咬口。

3.主机传动由变频器节制，变频机电驱动，加加速不变疾速。
4..并设有预置主动计米，计较卷径，报警停机等功效。
5.接纳圆刀直刀纵切，分切盘(pan)面整(zheng)洁，废边主动解(jie)除。

6.产品由PLC触碰屏人与机器操作界面主动权弹性合理。 Scope of applicationThe surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, Non-woven fabric, meltblown fabric ,plastic film and insulating material. It is an ideal equipment for fine-cutting materials. Performance and characteristics1. The unwinding is automatically rectified by ultrasonic wave, and the shaftless hydraulic loading and unloading is adopted. The adjustment of the left and right spacing is completed by hydraulic pressure, and the magnetic powder is automatically controlled by tension.2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
