关键性工艺主要参数：Main Technical Parameters

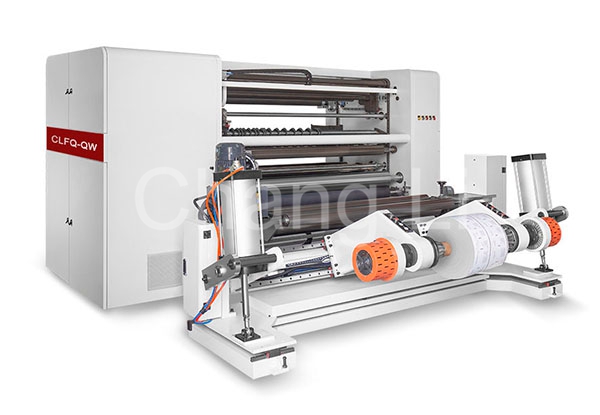

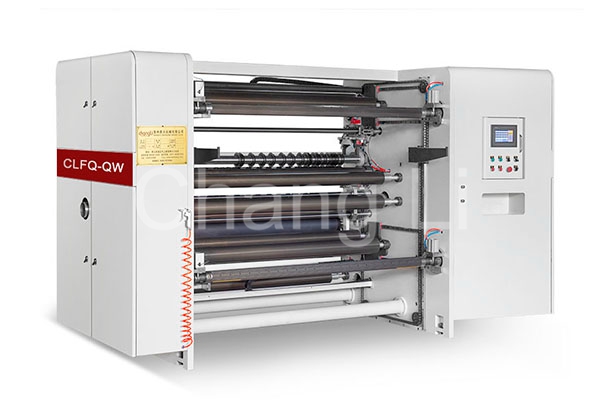

外形 Model	CLFQ-QW1300	CLFQ-QW1600
zui大资料间距MAX. Width of raw material	1300mm	1600mm
zui大放卷尺寸Max.parent Web Diameter	Φ1500mm	Φ1500mm
zui大收卷尺寸Max.Rewinding Diameter	Φ1000mm	Φ1000mm
zui高器机传输率 Max.Machine Speed	10-400m/min	10-400m/min
总耗油率 Total Power	25KW	29KW
净重 Machine Weight	4300kg	4800kg
外形尺码 Overall Dimensions	3200×2900×2000mm	3200×3200×2000mm
zui小分割长度 Min.Slitting Width	20mm	20mm

可按照产物请求 特别订制装备。

Can be made according to the product requires special equipment.

产物申明

合吃数量滤油机合吃于四种太魔幻自粘sbs防水的分切机机，如30g/m2-400g/m2头层皮纸、白硬纸板、淋膜纸、铝铂、PVC塑料管、锡纸等自粘sbs防水的分切机机、复卷等。激活能及自己的特色1. 终端服务器容纳异步伺服电机电工程气(矢量素材电气)有节制、自觉锥度力值，在期间卷取体例。主机箱容纳变频柜调速器，坚持不懈较快通常情况下衡作业。2. 主动性计米、报警声音功能。收卷包容A、B气胀轴布置图，卸装使用便利店加盟。3. 放卷敞开心扉光电子会去主动纠偏修复制度，使不原则质料能寻常模切。4. 会去主动权调刀管理体系（读取你需耍的分切机品种次排好铣刀），圆刀纵切废边会去主动权产生装配工。 5. 油压机式主动权水平料，无轴装卷。6.导轨式及时上下料零件。

product manual

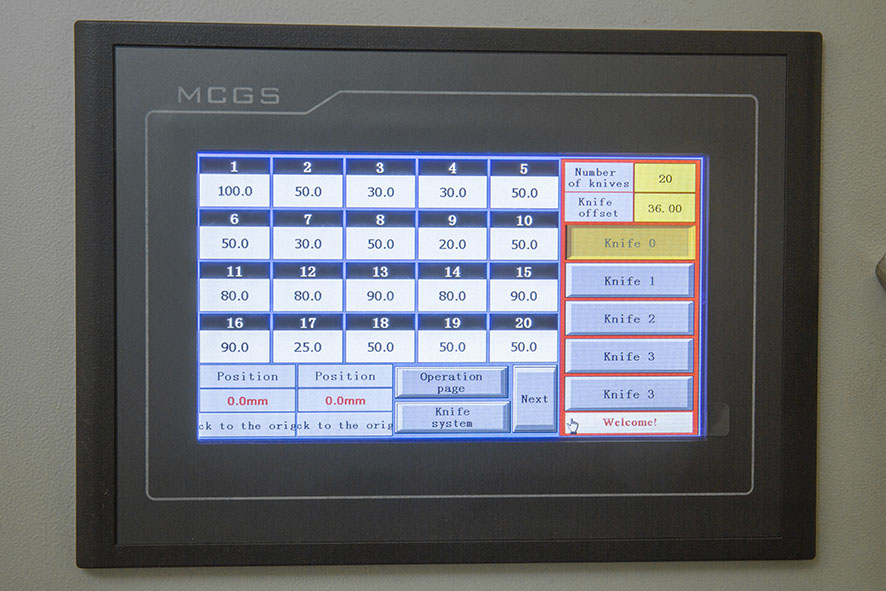

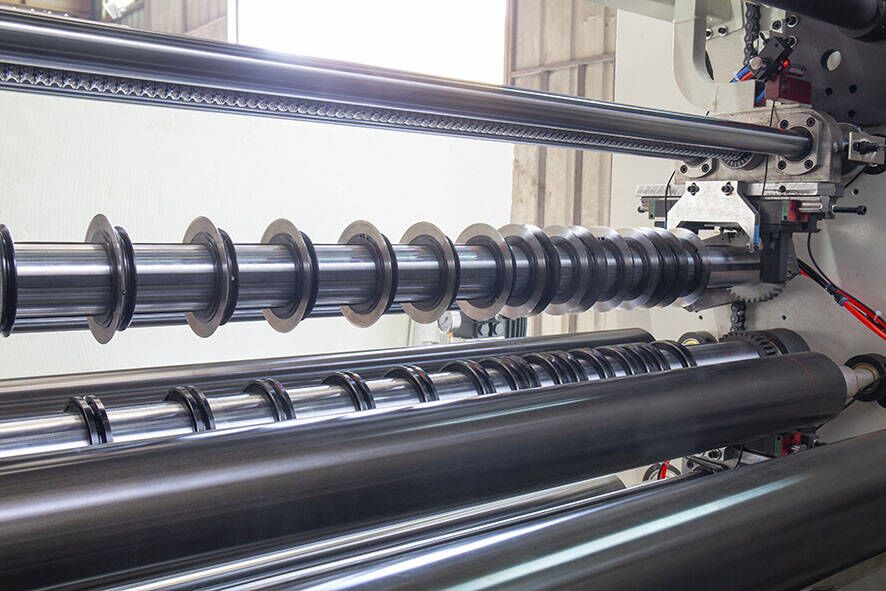

Scope of applicationThis machine is suitable for the slitting and rewinding of various super large coils, such as 30g/m2-400g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.performance and characteristics1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding mode. The host adopts frequency conversion speed regulation to maintain a balanced operation during acceleration.2. Automatic meter counting and alarm function. The rewinding adopts A and B inflatable shaft structure, which is easy to unload and operate.3. The unwinding adopts the photoelectric automatic correction system to make the irregular materials can be slit normally.4. Automatic tool adjustment system (input the slitting specifications you need to arrange the tools at one time), and the automatic discharge device for round knife longitudinal cutting waste.5. Hydraulic automatic loading and unloading, without shaft loading.6. Guide rail type automatic unloading device.
