同用面积该设备主要用在各种类型纸材，纸塑pp类，膜类等装潢資料和包装箱資料的复卷。

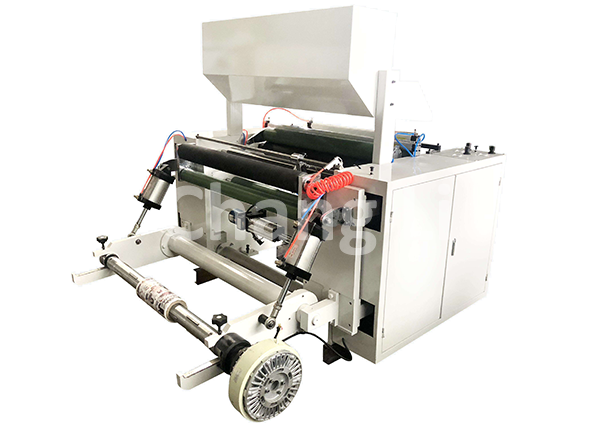

机都及苏州特色 1.机器辨别是非系列伺服定长给料，在高速公路运营中保持高精密度较。2.PLC触碰屏自主计米，米数自主控制。3.气动平衡式积极放料，收、放法杖配气胀轴。4.及时切断所有设备的电源、驻车是任何添加，预送猜测收秘药再不断收料等药用价值。Scope of applicationScope of applicationThis machine is mainly used for re-winding of various paper, paper-plastic composite, film and other decorative materials and packaging materials.

Performance and characteristics1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.2. PLC touch screen automatically counts meters, meters are automatically set.3. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.4. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.

首要手艺参数 Main Technical Parameters

仪(yi)器 Model		CLFJ-B800	CLFJ- B1000	CLFJ-B1300
sbs防水参数(shu) MAX.Parent Web Width		800mm	1000mm	1300mm
放卷长度 Max.parent Web Diameter		Φ600mm	Φ600mm	Φ600mm
收卷直徑 Max.Rewinding Diameter		Φ300mm	Φ300mm	Φ300mm
波特率 Max.Machine Speed		10-180m/min	10-180m/min	10-180m/min
定(ding)长高精(jing)度Fixed length accuracy		±5mm	±5mm	±5mm
总电率(lv) Total Power		2.3KW	3KW	4.5KW
图像 Machine Weight		1000kg	1200kg	1500kg
的(de)样子寸(cun)尺(chi) Overall Dimensions 日常(chang)任(ren)务工作电压 Working Voltage		2600×2000×1600mm 二相220V50HZ	2600×2200×1600mm 二相220V50HZ	2600×2500×1600mm 三相380V50HZ
纸芯技术参数Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)
