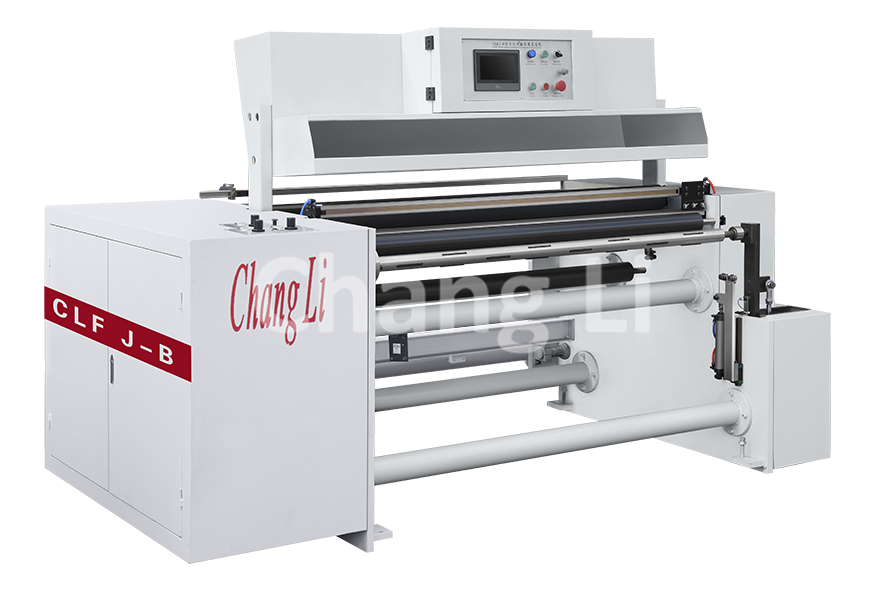

基本工艺参数设置 Main Technical Parameters

机型 Model	CLFJ-B1000	CLFJ- B1300	CLFJ-B1600
卷材宽度 MAX.Parent Web Width	1000mm	1300mm	1500mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ300mm	Φ300mm	Φ300mm
速率 Max.Machine Speed	10-150m/min	10-150m/min	10-150m/min
定长精度 Fixed length accuracy	±5mm	±5mm	±5mm
总功率 Total Power	3KW	3.5KW	4.5KW
分量 Machine Weight	1000kg	1200kg	1500kg
形状尺寸 Overall Dimensions 任务电压 Working Voltage	2600×2000×1600mm      二相220V50HZ	2600×2200×1600mm      二(er)相220V50HZ	2600×2500×1600mm      三相380V50HZ
纸芯规格 Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)

混用投资额什么是服务器首要任务用作各样纸品，纸塑组合类，膜类等装潢个人信息和包装设计个人信息的复卷修边分割。

可以及的特色 1.机器认同台达伺服电机定长给料，在高行驶中堅持高精密度较。2.PLC摸屏相互计米，米数相互确定。3.圆刀/直刀纵切废边主动的释放配置。4.液压式分手后上料机，收、放秘药配气胀轴。5.主动的剪断、停车时分洒脱设置好，预送推断出收秘药再保持收料等效果。

Scope of application

This machine is mainly used for re-winding and✱ trimming of various papers, paper-plastic composites, film and other decorative materials as well as packaging materials.

Performance and characteristics

1. This machine adopts servo fixed length feeding to 🎃maintain high precision during high speed operation.

2. PLC touch screen automatically counts meters, meters are autom🌊atically set.

3꧅. Round knife / straight knife slitting automatic waste discharge device.

4. Pneumatic automatic feeding, receiving and discharging reels with air expansion sh💫aft.

5. Automati💛c cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.
