首要任务技术指标：Main Technical Parameters

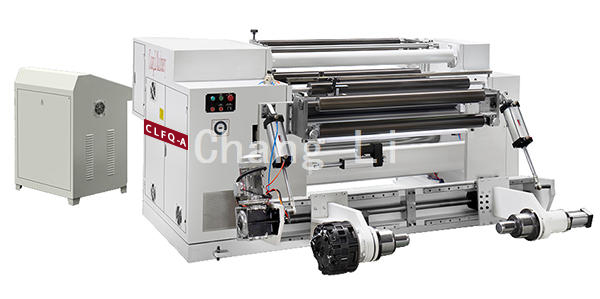

机型 Model	CLFQ-A1300	CLFQ-A1600
质料宽度 MAX.Width of raw material	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	16KW	19KW
分量 Machine Weight	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	30mm

可采用物质需求 制造防具。

Can be made according to the product🌼 requiꦕres special equipment.

申明及特色:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，数码膜、卷桶纸等。是bopp薄膜、薄片2次制造和数码进行包装公司企业的合适形号。2、加工零件图由PLC汇集了的概念有节制（三矢量素材机电工程专业）并进行触感屏人机对战接面对加工零件图进行汇集了的概念操作。3、放卷包容手动汽车刹车刹车系统器，由PLC活跃地比较卷径搞定活跃地拉伸应变控制。4、带领控制由台失量变頻建筑机电驱动包，搞定恒线速率单位控制，并阻挡距離收放卷张度当中的相爱的人作用。5、收秘药容纳气涨轴收卷由二台矢量素材定频机电工程专业自力控制，收卷拉力控制，以收卷半径，模切宽度，调整拉力等指标，由PLC运算完全自觉拉力累加。（待选滑差气涨轴）6、收护符快慢压延机聚散接纳孩子汽动自动装配，各种压力变大经途期间调压阀放肆。7、放卷用无轴装卸货物搬运料，气动系统弹簧伸缩，自动调宽度，料卷气动系统弹簧起伏，装卸货物搬运料便捷、效力待定高。8、放卷EPC纠编零件可精密有节制激光切割端面精密度。9、模切敞开心扉直刀模切自动配置，一端洁净，有边废物回收风送。（打印纸张需购卖圆刀模切自动配置）10、配件上的由一起带、一起轮为齿轮变速箱体例，履行与拉紧包容汽动体例11、带领导辊：静均衡化铝硬质合金导辊，表层变软应急处置 12、工作体系提供启动的缓存、智泊防松、计米定长，定速、卷径运算均分切作用与功效。13、系统具备条件完满的机、电、气混合式化思路，并接受完整详细的防护栏有效的方法。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film, color film, web, etc. It is the ideal model for film and sheet secondary processing and color🔯 printing packaging enterprises.

2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-machine interface to carry out centralize🏅d operation of the wholeꦚ machine.

3. The unwinding adopts pneumatic b♎rake brake, and the automatic tension control is realized by PLC automatically calculating the winding diameter.

4. The traction control is driven by a vector variable frequency motor to achieve constant line speed contr💝ol and effectively interrupt the interaction between the tension of the rewinding and 🙈unwinding.

5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the ten🅺sion and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

6. The upper and lower pressure roller of the take-up reel adopts a pneumatic device, and the pressure is controlled by a pressure regul𒀰ating valve.

7. Unwinding with shaftless loading and unloading material, pneumatic locking, narrow electric width adjustment, pneumatic lifting of material roll, convenient loading and unloading, high efficiencꦇy.

🌠8. The unwinding EPC correction device can accurately control the end face precision.

9. The slitting adopts the ℱstraight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

10. The whole machine💫 is driven by synchronous belt and synchronous wheel, and pneumatically operated by locki✅ng and locking.

11. Traction guide roller: static balance aluminum alloy guide roller, sur🦩face ha🍰rdening treatment

12. The system has the functi♒ons of starting buffering, parking anti-loose🐈, metering length, constant speed, and coil diameter calculation.

13. The system has a complete integrated design of machine, electricity and gas, and adopts complete༒ safety protection measure✅s.
