Description and characteristics:

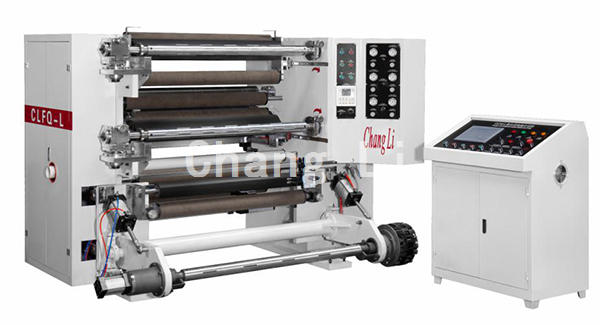

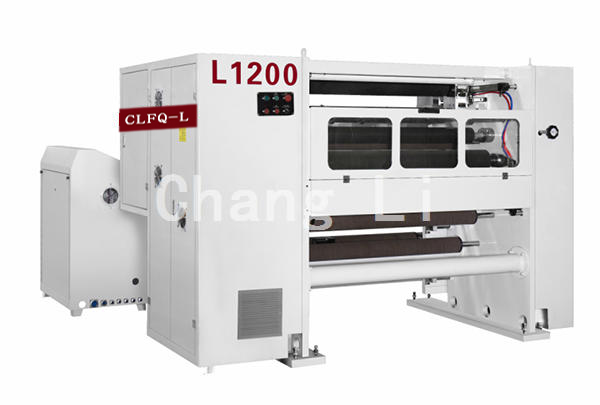

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film, color film. It is the ideal model for film and sheet secoไndary processing and color printing packaging enterprises.

2. The whole machine is controlled by PLC (three 🍸vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole ཧmachine.

3. The unwinding adopts🐻 the start brake brake, and the automatic calculation of the coil diameter is realizeᩚᩚᩚᩚᩚᩚ⁤⁤⁤⁤ᩚ⁤⁤⁤⁤ᩚ⁤⁤⁤⁤ᩚ𒀱ᩚᩚᩚd by the PLC.

4. The traction control is driven by a vector variable frequency motor to achieve constant line speed control and effectively in✤terrupt the interaction between the tension of the rewinding and unwinding.

5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air S𒉰haftrs）6. The take-up reel is clutched with a pneumatic device, and the pressure is controlled by a pressure regulating valve.♔ (The pressure roller is of flat push type).

7. The unwinding loading and unloading material adopts the gas-up shaft loadiꦡng and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high efficiency.

8.The unwinding EPC correction device 💧is equippedꦕ with a CCD image sensor to accurately control the end face accuracy.

9. The slitting adopts the straight knife slittingꦍ device, the end face is neat, and🐠 the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

10. The whole machine is driven by synchronous belt and synchronous whee🏅l, and pneumatically operated by locking and locking.

11. Traction guide roller: static balance aluminum alloy guide roller✅, surface hardening treatment

12. The system has the functions of starting buffering, parking a🐟nti-loose, metering length, constant speed, and coil diameter calculation.

13. The system ha🍎s a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
